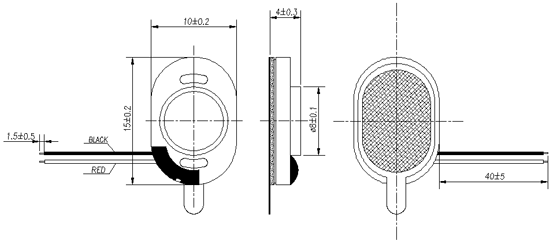

    DXP1510N-A-H Mobile Phone Miniature SPEAKER
      • DXP1510N-A-H Mobile Phone Miniature SPEAKER
      • DXP1510N-A-H Mobile Phone Miniature SPEAKER
      • DXP1510N-A-H Mobile Phone Miniature SPEAKER
      • DXP1510N-A-H Mobile Phone Miniature SPEAKER
      • DXP1510N-A-H Mobile Phone Miniature SPEAKER
    Product Details




    ModelDXP1510N-A-H
    Rated Impedance8 ohm
    Rated Power0.6 w
    Max Power0.8 w

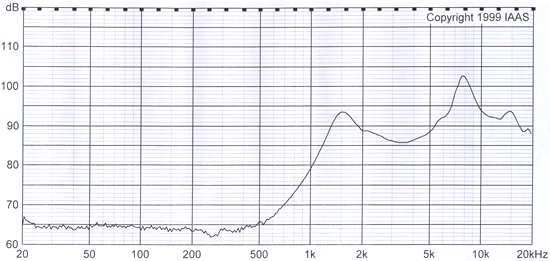

    Resonance Frequency（Fo）1350hz
    Rated Freq. RangeFo~5kHz
    Sound Pressure Level92±3dB/W/M
    Magnet NdFeB



    DXP1510N-A-H.pdf DOWNLOAD
