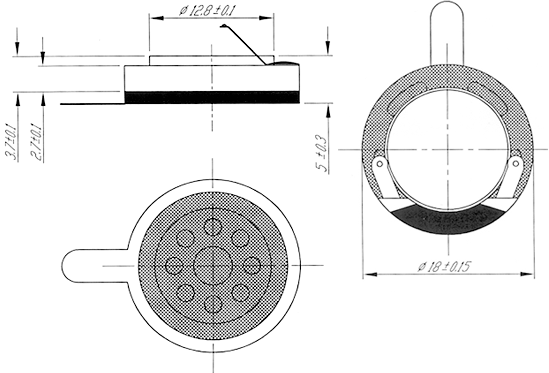

    DXP18N-A Mobile Phone Miniature SPEAKER
      • DXP18N-A Mobile Phone Miniature SPEAKER
      • DXP18N-A Mobile Phone Miniature SPEAKER
      • DXP18N-A Mobile Phone Miniature SPEAKER
      • DXP18N-A Mobile Phone Miniature SPEAKER
      • DXP18N-A Mobile Phone Miniature SPEAKER
    Product Details

     DXP18N-A.pdf DOWNLOAD





    ModelDXP18N-A
    Rated Impedance8 ohm
    Rated Power0.8w
    Max Power1.0 w

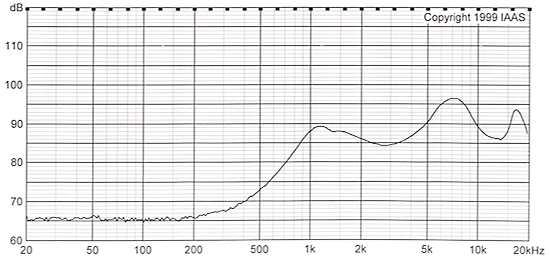

    Resonance Frequency（Fo）850 HZ
    Rated Freq. RangeFo-10K Hz
    Sound Pressure Level87±3dB/0.1W/0.1
    Magnet NdFeB
