    DXYD105W-70P-4A LOUDSPEAKER
      • DXYD105W-70P-4A LOUDSPEAKER
      • DXYD105W-70P-4A LOUDSPEAKER
      • DXYD105W-70P-4A LOUDSPEAKER
      • DXYD105W-70P-4A LOUDSPEAKER
      • DXYD105W-70P-4A LOUDSPEAKER
    Product Details

     DXYD105W-70P-4A.pdf DOWNLOAD



    ModelDXYD105W-AR
    Impedance4 ohm
    Nominal Power 10 w
    Maximum Power 20 w
    Magnetic Diameter45 mm
    eight30 mm
    Resonance Frequency（Fo）110Hz

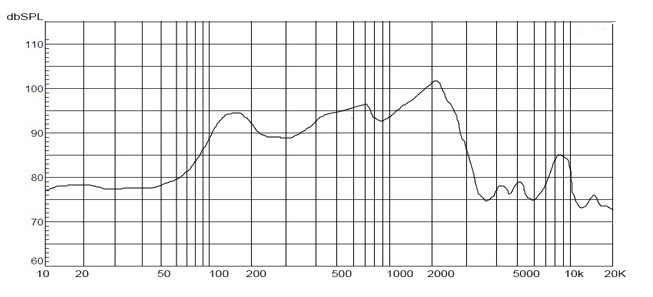

    Response: Fo~10kHz
    S.P.L:  92±3dB/W/M
